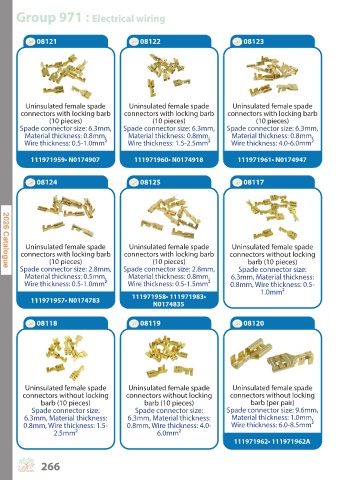

Page 266 - Paruzzi parts catalogue for the Volkswagen Vanagon
P. 266
Group 971 : Electrical wiring
08121 08122 08123
Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors with locking barb connectors with locking barb connectors with locking barb
(10 pieces) (10 pieces) (10 pieces)
Spade connector size: 6.3mm, Spade connector size: 6.3mm, Spade connector size: 6.3mm,
Material thickness: 0.8mm, Material thickness: 0.8mm, Material thickness: 0.8mm,
Wire thickness: 0.5-1.0mm² Wire thickness: 1.5-2.5mm² Wire thickness: 4.0-6.0mm²
111971959• N0174907 111971960• N0174918 111971961• N0174947
08124 08125 08117
Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors with locking barb connectors with locking barb connectors without locking
(10 pieces) (10 pieces) barb (10 pieces)
Spade connector size: 2.8mm, Spade connector size: 2.8mm, Spade connector size:
Material thickness: 0.5mm, Material thickness: 0.8mm, 6.3mm, Material thickness:
Wire thickness: 0.5-1.0mm² Wire thickness: 0.5-1.5mm² 0.8mm, Wire thickness: 0.5-
1.0mm²
111971958• 111971983•
111971957• N0174783
N0174835
08118 08119 08120
Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors without locking connectors without locking connectors without locking
barb (10 pieces) barb (10 pieces) barb (per pair)
Spade connector size: Spade connector size: Spade connector size: 9.6mm,
6.3mm, Material thickness: 6.3mm, Material thickness: Material thickness: 1.0mm,
0.8mm, Wire thickness: 1.5- 0.8mm, Wire thickness: 4.0- Wire thickness: 6.0-8.5mm²
2.5mm² 6.0mm²
111971962• 111971962A
