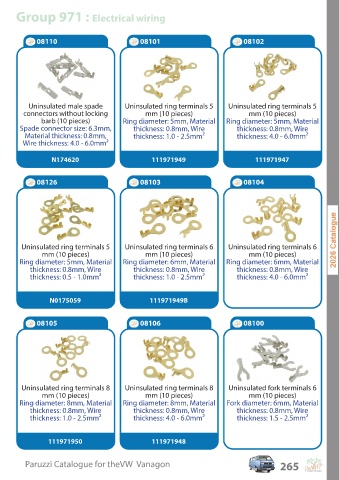

Page 265 - Paruzzi parts catalogue for the Volkswagen Vanagon

Group 971 : Electrical wiring

08110 08101 08102

Uninsulated male spade Uninsulated ring terminals 5 Uninsulated ring terminals 5
connectors without locking mm (10 pieces) mm (10 pieces)
barb (10 pieces) Ring diameter: 5mm, Material Ring diameter: 5mm, Material
Spade connector size: 6.3mm, thickness: 0.8mm, Wire thickness: 0.8mm, Wire
Material thickness: 0.8mm, thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm²
Wire thickness: 4.0 - 6.0mm²

N174620 111971949 111971947

08126 08103 08104

Uninsulated ring terminals 5 Uninsulated ring terminals 6 Uninsulated ring terminals 6
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 5mm, Material Ring diameter: 6mm, Material Ring diameter: 6mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 0.5 - 1.0mm² thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm²

N0175059 111971949B

08105 08106 08100

Uninsulated ring terminals 8 Uninsulated ring terminals 8 Uninsulated fork terminals 6
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 8mm, Material Ring diameter: 8mm, Material Fork diameter: 6mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm² thickness: 1.5 - 2.5mm²

111971950 111971948
