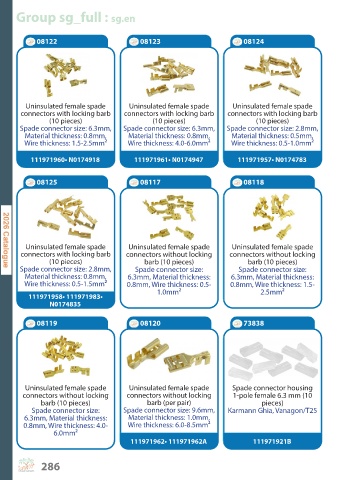

Page 286 - Paruzzi parts catalogue for the Volkswagen Split Bus

Group sg_full : sg.en

08122 08123 08124

Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors with locking barb connectors with locking barb connectors with locking barb
(10 pieces) (10 pieces) (10 pieces)
Spade connector size: 6.3mm, Spade connector size: 6.3mm, Spade connector size: 2.8mm,
Material thickness: 0.8mm, Material thickness: 0.8mm, Material thickness: 0.5mm,
Wire thickness: 1.5-2.5mm² Wire thickness: 4.0-6.0mm² Wire thickness: 0.5-1.0mm²

111971960• N0174918 111971961• N0174947 111971957• N0174783

08125 08117 08118

Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors with locking barb connectors without locking connectors without locking
(10 pieces) barb (10 pieces) barb (10 pieces)
Spade connector size: 2.8mm, Spade connector size: Spade connector size:
Material thickness: 0.8mm, 6.3mm, Material thickness: 6.3mm, Material thickness:
Wire thickness: 0.5-1.5mm² 0.8mm, Wire thickness: 0.5- 0.8mm, Wire thickness: 1.5-
1.0mm² 2.5mm²
111971958• 111971983•
N0174835

08119 08120 73838

Uninsulated female spade Uninsulated female spade Spade connector housing
connectors without locking connectors without locking 1-pole female 6.3 mm (10
barb (10 pieces) barb (per pair) pieces)
Spade connector size: Spade connector size: 9.6mm, Karmann Ghia, Vanagon/T25
6.3mm, Material thickness: Material thickness: 1.0mm,
0.8mm, Wire thickness: 4.0- Wire thickness: 6.0-8.5mm²
6.0mm²
111971962• 111971962A 111971921B
