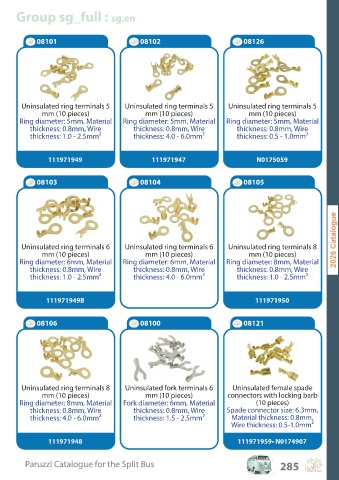

P. 285
Group sg_full : sg.en
08101 08102 08126
Uninsulated ring terminals 5 Uninsulated ring terminals 5 Uninsulated ring terminals 5
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 5mm, Material Ring diameter: 5mm, Material Ring diameter: 5mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm² thickness: 0.5 - 1.0mm²
111971949 111971947 N0175059
08103 08104 08105
Uninsulated ring terminals 6 Uninsulated ring terminals 6 Uninsulated ring terminals 8
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 6mm, Material Ring diameter: 6mm, Material Ring diameter: 8mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm² thickness: 1.0 - 2.5mm²
111971949B 111971950
08106 08100 08121
Uninsulated ring terminals 8 Uninsulated fork terminals 6 Uninsulated female spade
mm (10 pieces) mm (10 pieces) connectors with locking barb
Ring diameter: 8mm, Material Fork diameter: 6mm, Material (10 pieces)
thickness: 0.8mm, Wire thickness: 0.8mm, Wire Spade connector size: 6.3mm,
thickness: 4.0 - 6.0mm² thickness: 1.5 - 2.5mm² Material thickness: 0.8mm,
Wire thickness: 0.5-1.0mm²
111971948 111971959• N0174907
