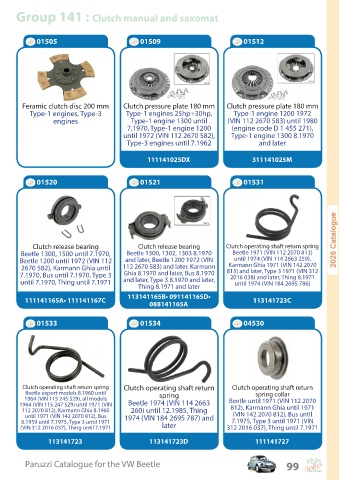

Page 99 - beetle

Group 141 : Clutch manual and saxomat

01505 01509 01512

Feramic clutch disc 200 mm Clutch pressure plate 180 mm Clutch pressure plate 180 mm
Type-1 engines, Type-3 Type-1 engines 25hp+30hp, Type-1 engine 1200 1972
engines Type-1 engine 1300 until (VIN 112 2670 583) until 1980
7.1970, Type-1 engine 1200 (engine code D 1 455 271),
until 1972 (VIN 112 2670 582), Type-1 engine 1300 8.1970
Type-3 engines until 7.1962 and later

111141025DX 311141025M

01520 01521 01531

Clutch release bearing Clutch release bearing Clutch operating shaft return spring
Beetle 1300, 1500 until 7.1970, Beetle 1300, 1302, 1303 8.1970 Beetle 1971 (VIN 112 2070 813)
Beetle 1200 until 1972 (VIN 112 and later, Beetle 1200 1972 (VIN until 1974 (VIN 114 2663 259),
Karmann Ghia 1971 (VIN 142 2070
2670 582), Karmann Ghia until 112 2670 583) and later, Karmann 813) and later, Type 3 1971 (VIN 312
7.1970, Bus until 7.1970, Type 3 Ghia 8.1970 and later, Bus 8.1970 2016 038) and later, Thing 8.1971
until 7.1970, Thing until 7.1971 and later, Type 3 8.1970 and later, until 1974 (VIN 184 2695 786)
Thing 8.1971 and later
113141165B• 091141165D•
111141165A• 111141167C 113141723C
088141165A

01533 01534 04530

Clutch operating shaft return spring Clutch operating shaft return Clutch operating shaft return
Beetle export models 8.1960 until spring spring collar
1964 (VIN 115 245 529), all models Beetle until 1971 (VIN 112 2070
1964 (VIN 115 247 529) until 1971 (VIN Beetle 1974 (VIN 114 2663
112 2070 812), Karmann Ghia 8.1960 260) until 12.1985, Thing 812), Karmann Ghia until 1971
until 1971 (VIN 142 2070 812), Bus 1974 (VIN 184 2695 787) and (VIN 142 2070 812), Bus until
6.1959 until 7.1975, Type 3 until 1971 7.1975, Type 3 until 1971 (VIN
(VIN 312 2016 037), Thing until 7.1971 later 312 2016 037), Thing until 7.1971

113141723 113141723D 111141727
