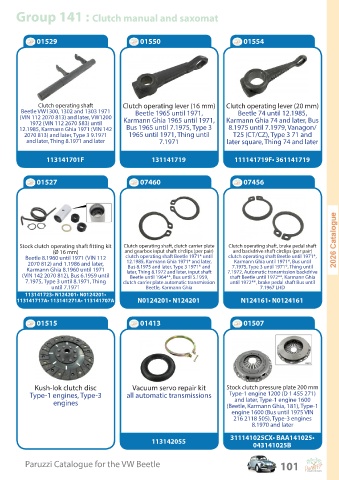

P. 101

Group 141 : Clutch manual and saxomat




              01529                                01550                               01554












              Clutch operating shaft        Clutch operating lever (16 mm)      Clutch operating lever (20 mm)
        Beetle VW1300, 1302 and 1303 1971        Beetle 1965 until 1971,             Beetle 74 until 12.1985,
        (VIN 112 2070 813) and later, VW1200   Karmann Ghia 1965 until 1971,     Karmann Ghia 74 and later, Bus
           1972 (VIN 112 2670 583) until
        12.1985, Karmann Ghia 1971 (VIN 142   Bus 1965 until 7.1975, Type 3      8.1975 until 7.1979, Vanagon/
          2070 813) and later, Type 3 9.1971   1965 until 1971, Thing until        T25 (CT/CZ), Type 3 71 and
          and later, Thing 8.1971 and later              7.1971                  later square, Thing 74 and later


                 113141701F                           131141719                    111141719F• 361141719



              01527                                07460                               07456












        Stock clutch operating shaft fitting kit   Clutch operating shaft, clutch carrier plate   Clutch operating shaft, brake pedal shaft
                    (Ø 16 mm)                and gearbox input shaft circlips (per pair)  and backdrive shaft circlips (per pair)
          Beetle 8.1960 until 1971 (VIN 112   clutch operating shaft Beetle 1971* until   clutch operating shaft Beetle until 1971*,
           2070 812) and 1.1986 and later,   12.1985, Karmann Ghia 1971* and later,   Karmann Ghia until 1971*, Bus until
                                                                                   7.1975, Type 3 until 1971*, Thing until
                                              Bus 8.1975 and later, Type 3 1971* and
          Karmann Ghia 8.1960 until 1971     later, Thing 8.1972 and later, input shaft   7.1972, Automatic transmission backdrive
         (VIN 142 2070 812), Bus 6.1959 until   Beetle until 1964**, Bus until 5.1959,   shaft Beetle until 1972**, Karmann Ghia
          7.1975, Type 3 until 8.1971, Thing   clutch carrier plate automatic transmission   until 1972**, brake pedal shaft Bus until
                   until 7.1971                     Beetle, Karmann Ghia                    7.1967 LHD
          113141723• N124201• N0124201•
       113141717A• 113141271A• 113141707A        N0124201• N124201                    N124161• N0124161



              01515                                01413                               01507












             Kush-lok clutch disc               Vacuum servo repair kit          Stock clutch pressure plate 200 mm
           Type-1 engines, Type-3             all automatic transmissions         Type-1 engine 1200 (D 1 455 271)
                                                                                   and later, Type-1 engine 1600
                    engines                                                      (Beetle, Karmann Ghia, 181), Type-1
                                                                                  engine 1600 (Bus until 1975 VIN
                                                                                   216 2118 505), Type-3 engines
                                                                                         8.1970 and later


                                                      113142055                   311141025CX• BAA141025•
                                                                                          043141025B

          Paruzzi Catalogue for the VW Beetle                                                      101
