bearing replacement

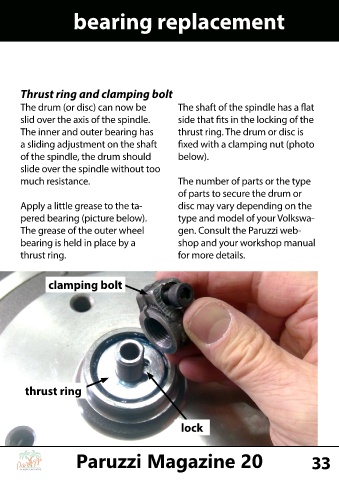

Thrust ring and clamping bolt
The drum (or disc) can now be The shaft of the spindle has a flat
slid over the axis of the spindle. side that fits in the locking of the
The inner and outer bearing has thrust ring. The drum or disc is
a sliding adjustment on the shaft fixed with a clamping nut (photo
of the spindle, the drum should below).
slide over the spindle without too
much resistance. The number of parts or the type
of parts to secure the drum or
Apply a little grease to the ta- disc may vary depending on the
pered bearing (picture below). type and model of your Volkswa-
The grease of the outer wheel gen. Consult the Paruzzi web-
bearing is held in place by a shop and your workshop manual
thrust ring. for more details.
clamping bolt
thrust ring
lock
