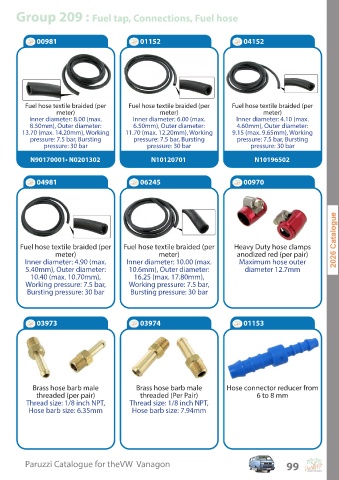

Page 99 - Paruzzi parts catalogue for the Volkswagen Vanagon

Group 209 : Fuel tap, Connections, Fuel hose

00981 01152 04152

Fuel hose textile braided (per Fuel hose textile braided (per Fuel hose textile braided (per
meter) meter) meter)
Inner diameter: 8.00 (max. Inner diameter: 6.00 (max. Inner diameter: 4.10 (max.
8.50mm), Outer diameter: 6.50mm), Outer diameter: 4.60mm), Outer diameter:
13.70 (max. 14.20mm), Working 11.70 (max. 12.20mm), Working 9.15 (max. 9.65mm), Working
pressure: 7.5 bar, Bursting pressure: 7.5 bar, Bursting pressure: 7.5 bar, Bursting
pressure: 30 bar pressure: 30 bar pressure: 30 bar

N90170001• N0201302 N10120701 N10196502

04981 06245 00970

Fuel hose textile braided (per Fuel hose textile braided (per Heavy Duty hose clamps
meter) meter) anodized red (per pair)
Inner diameter: 4.90 (max. Inner diameter: 10.00 (max. Maximum hose outer
5.40mm), Outer diameter: 10.6mm), Outer diameter: diameter 12.7mm
10.40 (max. 10.70mm), 16.25 (max. 17.80mm),
Working pressure: 7.5 bar, Working pressure: 7.5 bar,
Bursting pressure: 30 bar Bursting pressure: 30 bar

03973 03974 01153

Brass hose barb male Brass hose barb male Hose connector reducer from
threaded (per pair) threaded (Per Pair) 6 to 8 mm
Thread size: 1/8 inch NPT, Thread size: 1/8 inch NPT,
Hose barb size: 6.35mm Hose barb size: 7.94mm
