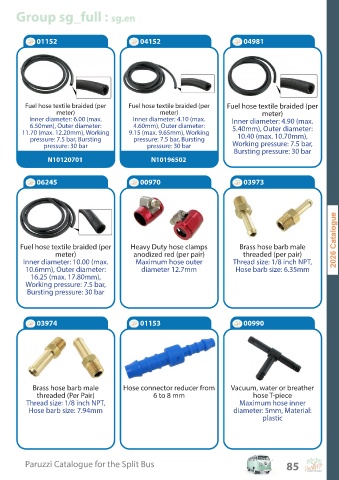

Page 85 - Paruzzi parts catalogue for the Volkswagen Split Bus

Group sg_full : sg.en

01152 04152 04981

Fuel hose textile braided (per Fuel hose textile braided (per Fuel hose textile braided (per
meter) meter) meter)
Inner diameter: 6.00 (max. Inner diameter: 4.10 (max. Inner diameter: 4.90 (max.
6.50mm), Outer diameter: 4.60mm), Outer diameter: 5.40mm), Outer diameter:
11.70 (max. 12.20mm), Working 9.15 (max. 9.65mm), Working 10.40 (max. 10.70mm),
pressure: 7.5 bar, Bursting pressure: 7.5 bar, Bursting
pressure: 30 bar pressure: 30 bar Working pressure: 7.5 bar,
Bursting pressure: 30 bar
N10120701 N10196502

06245 00970 03973

Fuel hose textile braided (per Heavy Duty hose clamps Brass hose barb male
meter) anodized red (per pair) threaded (per pair)
Inner diameter: 10.00 (max. Maximum hose outer Thread size: 1/8 inch NPT,
10.6mm), Outer diameter: diameter 12.7mm Hose barb size: 6.35mm
16.25 (max. 17.80mm),
Working pressure: 7.5 bar,
Bursting pressure: 30 bar

03974 01153 00990

Brass hose barb male Hose connector reducer from Vacuum, water or breather
threaded (Per Pair) 6 to 8 mm hose T-piece
Thread size: 1/8 inch NPT, Maximum hose inner
Hose barb size: 7.94mm diameter: 5mm, Material:
plastic

talogue f
or the Split Bus
aruzzi C
P
a
Paruzzi Catalogue for the Split Bus 85
