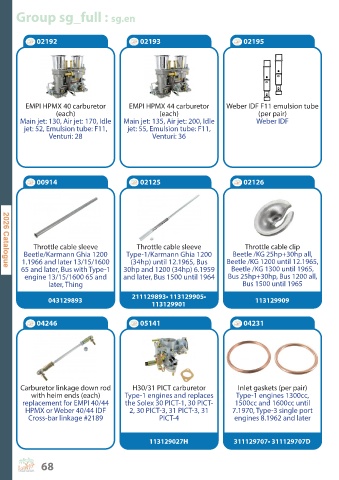

Page 68 - Paruzzi parts catalogue for the Volkswagen Split Bus

Group sg_full : sg.en

02192 02193 02195

EMPI HPMX 40 carburetor EMPI HPMX 44 carburetor Weber IDF F11 emulsion tube
(each) (each) (per pair)
Main jet: 130, Air jet: 170, Idle Main jet: 135, Air jet: 200, Idle Weber IDF
jet: 52, Emulsion tube: F11, jet: 55, Emulsion tube: F11,
Venturi: 28 Venturi: 36

00914 02125 02126

Throttle cable sleeve Throttle cable sleeve Throttle cable clip
Beetle/Karmann Ghia 1200 Type-1/Karmann Ghia 1200 Beetle /KG 25hp+30hp all,
1.1966 and later 13/15/1600 (34hp) until 12.1965, Bus Beetle /KG 1200 until 12.1965,
65 and later, Bus with Type-1 30hp and 1200 (34hp) 6.1959 Beetle /KG 1300 until 1965,
engine 13/15/1600 65 and and later, Bus 1500 until 1964 Bus 25hp+30hp, Bus 1200 all,
later, Thing Bus 1500 until 1965

211129893• 113129905•
043129893 113129909
113129901

04246 05141 04231

Carburetor linkage down rod H30/31 PICT carburetor Inlet gaskets (per pair)
with heim ends (each) Type-1 engines and replaces Type-1 engines 1300cc,
replacement for EMPI 40/44 the Solex 30 PICT-1, 30 PICT- 1500cc and 1600cc until
HPMX or Weber 40/44 IDF 2, 30 PICT-3, 31 PICT-3, 31 7.1970, Type-3 single port
Cross-bar linkage #2189 PICT-4 engines 8.1962 and later

113129027H 311129707• 311129707D

68
