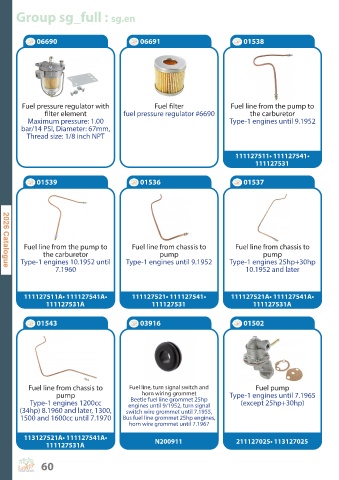

Page 60 - Paruzzi parts catalogue for the Volkswagen Split Bus

Group sg_full : sg.en

06690 06691 01538

Fuel pressure regulator with Fuel filter Fuel line from the pump to
filter element fuel pressure regulator #6690 the carburetor
Maximum pressure: 1.00 Type-1 engines until 9.1952
bar/14 PSI, Diameter: 67mm,
Thread size: 1/8 inch NPT

111127511• 111127541•
111127531

01539 01536 01537

Fuel line from the pump to Fuel line from chassis to Fuel line from chassis to
the carburetor pump pump
Type-1 engines 10.1952 until Type-1 engines until 9.1952 Type-1 engines 25hp+30hp
7.1960 10.1952 and later

111127511A• 111127541A• 111127521• 111127541• 111127521A• 111127541A•
111127531A 111127531 111127531A

01543 03916 01502

Fuel line from chassis to Fuel line, turn signal switch and Fuel pump
pump horn wiring grommet Type-1 engines until 7.1965
Beetle fuel line grommet 25hp
Type-1 engines 1200cc engines until 9/1952, turn signal (except 25hp+30hp)
(34hp) 8.1960 and later, 1300, switch wire grommet until 7.1955,
1500 and 1600cc until 7.1970 Bus fuel line grommet 25hp engines,
horn wire grommet until 7.1967

113127521A• 111127541A• N200911 211127025• 113127025
111127531A

60
