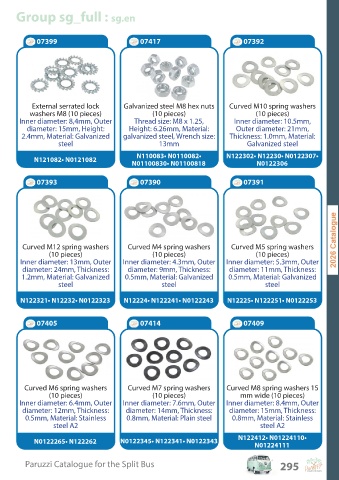

Page 295 - Paruzzi parts catalogue for the Volkswagen Split Bus
P. 295
Group sg_full : sg.en
07399 07417 07392
External serrated lock Galvanized steel M8 hex nuts Curved M10 spring washers
washers M8 (10 pieces) (10 pieces) (10 pieces)
Inner diameter: 8,4mm, Outer Thread size: M8 x 1.25, Inner diameter: 10.5mm,
diameter: 15mm, Height: Height: 6.26mm, Material: Outer diameter: 21mm,
2.4mm, Material: Galvanized galvanized steel, Wrench size: Thickness: 1.0mm, Material:
steel 13mm Galvanized steel
N110083• N0110082• N122302• N12230• N0122307•
N121082• N0121082
N01100830• N01100818 N0122306
07393 07390 07391
Curved M12 spring washers Curved M4 spring washers Curved M5 spring washers
(10 pieces) (10 pieces) (10 pieces)
Inner diameter: 13mm, Outer Inner diameter: 4.3mm, Outer Inner diameter: 5.3mm, Outer
diameter: 24mm, Thickness: diameter: 9mm, Thickness: diameter: 11mm, Thickness:
1.2mm, Material: Galvanized 0.5mm, Material: Galvanized 0.5mm, Material: Galvanized
steel steel steel
N122321• N12232• N0122323 N12224• N122241• N0122243 N12225• N122251• N0122253
07405 07414 07409
Curved M6 spring washers Curved M7 spring washers Curved M8 spring washers 15
(10 pieces) (10 pieces) mm wide (10 pieces)
Inner diameter: 6.4mm, Outer Inner diameter: 7.6mm, Outer Inner diameter: 8.4mm, Outer
diameter: 12mm, Thickness: diameter: 14mm, Thickness: diameter: 15mm, Thickness:
0.5mm, Material: Stainless 0.8mm, Material: Plain steel 0.8mm, Material: Stainless
steel A2 steel A2
N0122265• N122262 N0122345• N122341• N0122343 N122412• N01224110•
N01224111
or the Split Bus
talogue f
aruzzi C
P
a
Paruzzi Catalogue for the Split Bus 295
