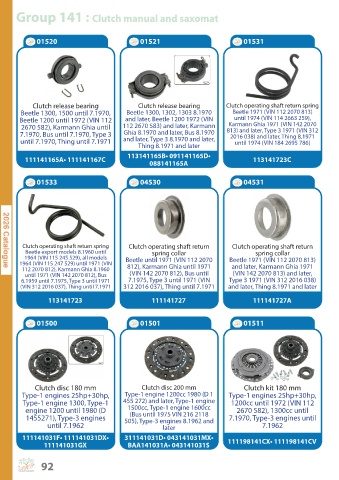

Page 92 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 92

Group 141 : Clutch manual and saxomat



              01520                                01521                               01531












             Clutch release bearing               Clutch release bearing        Clutch operating shaft return spring
        Beetle 1300, 1500 until 7.1970,      Beetle 1300, 1302, 1303 8.1970        Beetle 1971 (VIN 112 2070 813)
        Beetle 1200 until 1972 (VIN 112      and later, Beetle 1200 1972 (VIN      until 1974 (VIN 114 2663 259),
                                                                                 Karmann Ghia 1971 (VIN 142 2070
        2670 582), Karmann Ghia until       112 2670 583) and later, Karmann     813) and later, Type 3 1971 (VIN 312
        7.1970, Bus until 7.1970, Type 3    Ghia 8.1970 and later, Bus 8.1970     2016 038) and later, Thing 8.1971
        until 7.1970, Thing until 7.1971    and later, Type 3 8.1970 and later,    until 1974 (VIN 184 2695 786)
                                                  Thing 8.1971 and later
                                              113141165B• 091141165D•
          111141165A• 111141167C                                                          113141723C
                                                     088141165A


              01533                                04530                               04531












         Clutch operating shaft return spring  Clutch operating shaft return       Clutch operating shaft return
          Beetle export models 8.1960 until           spring collar                        spring collar
          1964 (VIN 115 245 529), all models   Beetle until 1971 (VIN 112 2070    Beetle 1971 (VIN 112 2070 813)
        1964 (VIN 115 247 529) until 1971 (VIN
         112 2070 812), Karmann Ghia 8.1960   812), Karmann Ghia until 1971       and later, Karmann Ghia 1971
          until 1971 (VIN 142 2070 812), Bus   (VIN 142 2070 812), Bus until       (VIN 142 2070 813) and later,
         6.1959 until 7.1975, Type 3 until 1971   7.1975, Type 3 until 1971 (VIN   Type 3 1971 (VIN 312 2016 038)
        (VIN 312 2016 037), Thing until 7.1971  312 2016 037), Thing until 7.1971  and later, Thing 8.1971 and later

                  113141723                           111141727                           111141727A



              01500                                01501                               01511












             Clutch disc 180 mm                    Clutch disc 200 mm                  Clutch kit 180 mm
         Type-1 engines 25hp+30hp,           Type-1 engine 1200cc 1980 (D 1      Type-1 engines 25hp+30hp,
         Type-1 engine 1300, Type-1         455 272) and later, Type-1 engine     1200cc until 1972 (VIN 112
          engine 1200 until 1980 (D           1500cc, Type-1 engine 1600cc          2670 582), 1300cc until
                                               (Bus until 1975 VIN 216 2118
          1455271), Type-3 engines           505), Type-3 engines 8.1962 and     7.1970, Type-3 engines until
                  until 7.1962                            later                              7.1962

         111141031F• 111141031DX•            311141031D• 043141031MX•            111198141CX• 111198141CV
                111141031GX                   BAA141031A• 043141031S


               92
