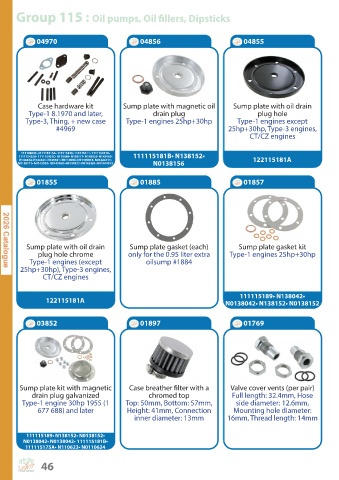

Page 46 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 115 : Oil pumps, Oil fillers, Dipsticks

04970 04856 04855

Case hardware kit Sump plate with magnetic oil Sump plate with oil drain
Type-1 8.1970 and later, drain plug plug hole
Type-3, Thing, + new case Type-1 engines 25hp+30hp Type-1 engines except
#4969 25hp+30hp, Type-3 engines,
CT/CZ engines

113198033• 311115315A• 113115349• 113115411• 111115421A•
111115425A• 111115431C• N110088• N138171• N143953• N143963• 111115181B• N138152•
N144434• N144521• N145581• N0110088• N01100818• N01224111• 122115181A
N0138171• N0143953• N0143968• N0144521• N0145581• N01444312 N0138156

01855 01885 01857

Sump plate with oil drain Sump plate gasket (each) Sump plate gasket kit
plug hole chrome only for the 0.95 liter extra Type-1 engines 25hp+30hp
Type-1 engines (except oilsump #1884
25hp+30hp), Type-3 engines,
CT/CZ engines

111115189• N138042•
122115181A N0138042• N138152• N0138152

03852 01897 01769

Sump plate kit with magnetic Case breather filter with a Valve cover vents (per pair)
drain plug galvanized chromed top Full length: 32.4mm, Hose
Type-1 engine 30hp 1955 (1 Top: 50mm, Bottom: 57mm, side diameter: 12.6mm,
677 688) and later Height: 41mm, Connection Mounting hole diameter:
inner diameter: 13mm 16mm, Thread length: 14mm

111115189• N138152• N0138152•
N0138042• N0138042• 111115181B•
111115175A• N110623• N0110624
