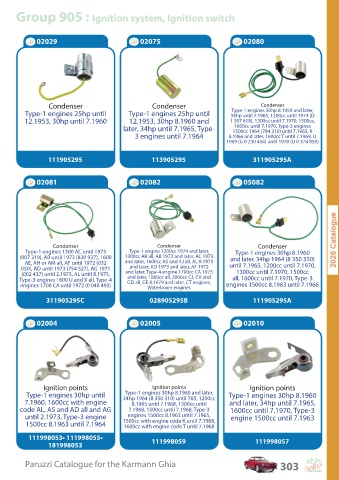

Page 303 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 303

Group 905 : Ignition system, Ignition switch




              02029                                02075                               02080












                  Condenser                           Condenser                              Condenser
                                                                                  Type-1 engines 30hp 8.1959 and later,
          Type-1 engines 25hp until           Type-1 engines 25hp until           34hp until 7.1965, 1200cc until 1974 (D
          12.1953, 30hp until 7.1960          12.1953, 30hp 8.1960 and            1 307 618), 1300cc until 7.1970, 1500cc,
                                                                                   1600cc until 7.1970, Type-3 engines
                                            later, 34hp until 7.1965, Type-        1500cc 1964 (784 310) until 7.1965, K
                                                3 engines until 7.1964           8.1966 and later, 1600cc T until 7.1969, U
                                                                                 1969 (U 0 230 434) until 1970 (U 0 374 850)


                  111905295                           113905295                           311905295A



              02081                                02082                               05082












                    Condenser                           Condenser                           Condenser
          Type-1 engines 1300 AC until 1973   Type-1 engine 1200cc 1974 and later,   Type-1 engines 30hp 8.1960
        (007 319), AB until 1973 (830 937), 1600   1300cc AR all, AB 1973 and later, AC 1973   and later, 34hp 1964 (8 350 310)
          AE, AH or AM all, AF until 1972 (032   and later, 1600cc AS and AJ all, AL 9.1975
        050), AD until 1973 (754 527), AG 1971   and later, AD 1973 and later, AF 1972   until 7.1965, 1200cc until 7.1970,
         (002 437) until 2.1973, AL until 8.1975,   and later, Type-4 engine 1700cc CA 1973   1300cc until 7.1970, 1500cc
        Type-3 engines 1600 U and X all, Type-4   and later, 1800cc all, 2000cc CJ, CV and   all, 1600cc until 7.1970, Type-3
                                              GD all, GE 8.1979 and later, CT engines,
        engines 1700 CA until 1972 (0 040 493)       Waterboxer engines         engines 1500cc 8.1963 until 7.1966
                 311905295C                           028905295B                          111905295A



              02004                                02005                               02010












                Ignition points                       Ignition points                    Ignition points
                                             Type-1 engines 30hp 8.1960 and later,
          Type-1 engines 30hp until         34hp 1964 (8 350 310) until 765, 1200cc   Type-1 engines 30hp 8.1960
          7.1960, 1600cc with engine           8.1965 until 7.1968, 1300cc until   and later, 34hp until 7.1965,
        code AL, AS and AD all and AG         7.1968, 1500cc until 7.1968, Type-3   1600cc until 7.1970, Type-3
          until 2.1973, Type-3 engine         engines 1500cc 8.1963 until 7.1965,   engine 1500cc until 7.1963
          1500cc 8.1963 until 7.1964        1500cc with engine code K until 7.1968,
                                            1600cc with engine code T until 7.1968
           111998053• 111998055•                      111998059                            111998057
                  181998053

          P aruzzi C  a talogue f  or the K   ar mann Ghia                                         303
          Paruzzi Catalogue for the Karmann Ghia
                                                                                                   303
