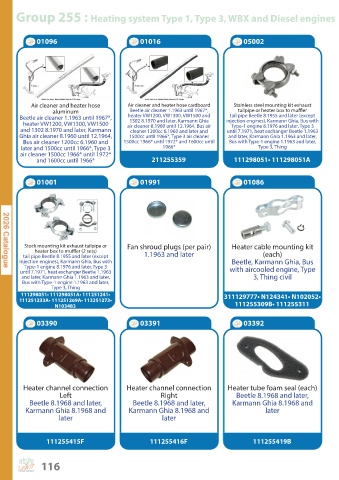

Page 116 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 255 : Heating system Type 1, Type 3, WBX and Diesel engines

01096 01016 05002

Air cleaner and heater hose Air cleaner and heater hose cardboard Stainless steel mounting kit exhaust
aluminum Beetle air cleaner 1.1963 until 1967*, tailpipe or heater box to muffler
tail pipe Beetle 8.1955 and later (except
Beetle air cleaner 1.1963 until 1967*, heater VW1200, VW1300, VW1500 and injection engines), Karmann Ghia, Bus with
1302 8.1970 and later, Karmann Ghia
heater VW1200, VW1300, VW1500 air cleaner 8.1960 until 12.1964, Bus air Type-1 engine 8.1976 and later, Type 3
and 1302 8.1970 and later, Karmann cleaner 1200cc 6.1960 and later and until 7.1971, heat exchanger Beetle 1.1963
Ghia air cleaner 8.1960 until 12.1964, 1500cc until 1966*, Type 3 air cleaner and later, Karmann Ghia 1.1963 and later,
Bus air cleaner 1200cc 6.1960 and 1500cc 1966* until 1972* and 1600cc until Bus with Type-1 engine 1.1963 and later,
later and 1500cc until 1966*, Type 3 1966* Type 3, Thing
air cleaner 1500cc 1966* until 1972*
and 1600cc until 1966* 211255359 111298051• 111298051A

01001 01991 01086

Stock mounting kit exhaust tailpipe or Fan shroud plugs (per pair) Heater cable mounting kit
heater box to muffler (2 sets)
tail pipe Beetle 8.1955 and later (except 1.1963 and later (each)
injection engines), Karmann Ghia, Bus with Beetle, Karmann Ghia, Bus
Type-1 engine 8.1976 and later, Type 3 with aircooled engine, Type
until 7.1971, heat exchanger Beetle 1.1963
and later, Karmann Ghia 1.1963 and later, 3, Thing civil
Bus with Type-1 engine 1.1963 and later,
Type 3, Thing
111298051• 111298051A• 111251241• 311129777• N124341• N102052•
111251233A• 111251269A• 113251273•
N103483 111255309B• 111255311

03390 03391 03392

Heater channel connection Heater channel connection Heater tube foam seal (each)
Left Right Beetle 8.1968 and later,
Beetle 8.1968 and later, Beetle 8.1968 and later, Karmann Ghia 8.1968 and
Karmann Ghia 8.1968 and Karmann Ghia 8.1968 and later
later later

111255415F 111255416F 111255419B
