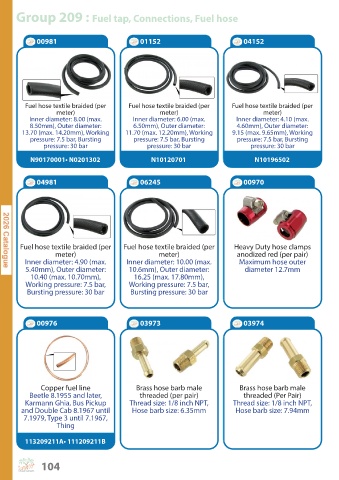

Page 104 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 209 : Fuel tap, Connections, Fuel hose

00981 01152 04152

Fuel hose textile braided (per Fuel hose textile braided (per Fuel hose textile braided (per
meter) meter) meter)
Inner diameter: 8.00 (max. Inner diameter: 6.00 (max. Inner diameter: 4.10 (max.
8.50mm), Outer diameter: 6.50mm), Outer diameter: 4.60mm), Outer diameter:
13.70 (max. 14.20mm), Working 11.70 (max. 12.20mm), Working 9.15 (max. 9.65mm), Working
pressure: 7.5 bar, Bursting pressure: 7.5 bar, Bursting pressure: 7.5 bar, Bursting
pressure: 30 bar pressure: 30 bar pressure: 30 bar

N90170001• N0201302 N10120701 N10196502

04981 06245 00970

Fuel hose textile braided (per Fuel hose textile braided (per Heavy Duty hose clamps
meter) meter) anodized red (per pair)
Inner diameter: 4.90 (max. Inner diameter: 10.00 (max. Maximum hose outer
5.40mm), Outer diameter: 10.6mm), Outer diameter: diameter 12.7mm
10.40 (max. 10.70mm), 16.25 (max. 17.80mm),
Working pressure: 7.5 bar, Working pressure: 7.5 bar,
Bursting pressure: 30 bar Bursting pressure: 30 bar

00976 03973 03974

Copper fuel line Brass hose barb male Brass hose barb male
Beetle 8.1955 and later, threaded (per pair) threaded (Per Pair)
Karmann Ghia, Bus Pickup Thread size: 1/8 inch NPT, Thread size: 1/8 inch NPT,
and Double Cab 8.1967 until Hose barb size: 6.35mm Hose barb size: 7.94mm
7.1979, Type 3 until 7.1967,
Thing

113209211A• 111209211B

104
