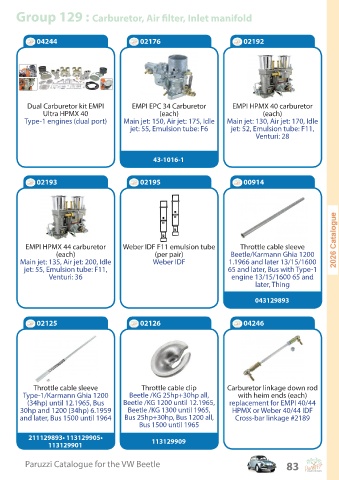

Page 83 - beetle

Group 129 : Carburetor, Air filter, Inlet manifold

04244 02176 02192

Dual Carburetor kit EMPI EMPI EPC 34 Carburetor EMPI HPMX 40 carburetor
Ultra HPMX 40 (each) (each)
Type-1 engines (dual port) Main jet: 150, Air jet: 175, Idle Main jet: 130, Air jet: 170, Idle
jet: 55, Emulsion tube: F6 jet: 52, Emulsion tube: F11,
Venturi: 28

43-1016-1

02193 02195 00914

EMPI HPMX 44 carburetor Weber IDF F11 emulsion tube Throttle cable sleeve
(each) (per pair) Beetle/Karmann Ghia 1200
Main jet: 135, Air jet: 200, Idle Weber IDF 1.1966 and later 13/15/1600
jet: 55, Emulsion tube: F11, 65 and later, Bus with Type-1
Venturi: 36 engine 13/15/1600 65 and
later, Thing

043129893

02125 02126 04246

Throttle cable sleeve Throttle cable clip Carburetor linkage down rod
Type-1/Karmann Ghia 1200 Beetle /KG 25hp+30hp all, with heim ends (each)
(34hp) until 12.1965, Bus Beetle /KG 1200 until 12.1965, replacement for EMPI 40/44
30hp and 1200 (34hp) 6.1959 Beetle /KG 1300 until 1965, HPMX or Weber 40/44 IDF
and later, Bus 1500 until 1964 Bus 25hp+30hp, Bus 1200 all, Cross-bar linkage #2189
Bus 1500 until 1965

211129893• 113129905• 113129909
113129901

eetle
W B
aruzzi C
P
Paruzzi Catalogue for the VW Beetle 83
