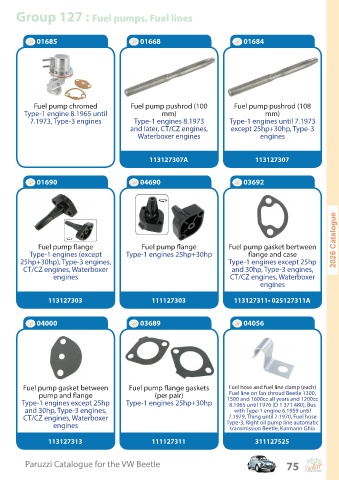

Group 127 : Fuel pumps, Fuel lines

01685 01668 01684

Fuel pump chromed Fuel pump pushrod (100 Fuel pump pushrod (108
Type-1 engine 8.1965 until mm) mm)
7.1973, Type-3 engines Type-1 engines 8.1973 Type-1 engines until 7.1973
and later, CT/CZ engines, except 25hp+30hp, Type-3
Waterboxer engines engines

113127307A 113127307

01690 04690 03692

Fuel pump flange Fuel pump flange Fuel pump gasket bertween
Type-1 engines (except Type-1 engines 25hp+30hp flange and case
25hp+30hp), Type-3 engines, Type-1 engines except 25hp
CT/CZ engines, Waterboxer and 30hp, Type-3 engines,
engines CT/CZ engines, Waterboxer
engines

113127303 111127303 113127311• 025127311A

04000 03689 04056

Fuel pump gasket between Fuel pump flange gaskets Fuel hose and fuel line clamp (each)
pump and flange (per pair) Fuel line on fan shroud Beetle 1300,
Type-1 engines except 25hp Type-1 engines 25hp+30hp 1500 and 1600cc all years and 1200cc
8.1965 until 1976 (D 1 371 480), Bus
and 30hp, Type-3 engines, with Type-1 engine 6.1959 until
CT/CZ engines, Waterboxer 7.1979, Thing until 7.1970, Fuel hose
engines Type-3, Right oil pump line automatic
transmission Beetle, Karmann Ghia

113127313 111127311 311127525

eetle
W B
aruzzi C
P
Paruzzi Catalogue for the VW Beetle 75
