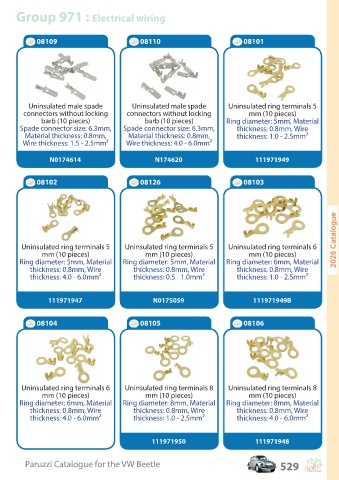

Page 529 - beetle

Group 971 : Electrical wiring

08109 08110 08101

Uninsulated male spade Uninsulated male spade Uninsulated ring terminals 5
connectors without locking connectors without locking mm (10 pieces)
barb (10 pieces) barb (10 pieces) Ring diameter: 5mm, Material
Spade connector size: 6.3mm, Spade connector size: 6.3mm, thickness: 0.8mm, Wire
Material thickness: 0.8mm, Material thickness: 0.8mm, thickness: 1.0 - 2.5mm²
Wire thickness: 1.5 - 2.5mm² Wire thickness: 4.0 - 6.0mm²

N0174614 N174620 111971949

08102 08126 08103

Uninsulated ring terminals 5 Uninsulated ring terminals 5 Uninsulated ring terminals 6
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 5mm, Material Ring diameter: 5mm, Material Ring diameter: 6mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 4.0 - 6.0mm² thickness: 0.5 - 1.0mm² thickness: 1.0 - 2.5mm²

111971947 N0175059 111971949B

08104 08105 08106

Uninsulated ring terminals 6 Uninsulated ring terminals 8 Uninsulated ring terminals 8
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 6mm, Material Ring diameter: 8mm, Material Ring diameter: 8mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 4.0 - 6.0mm² thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm²

111971950 111971948

V
or the
eetle
W B
P
aruzzi C
Paruzzi Catalogue for the VW Beetle 529
