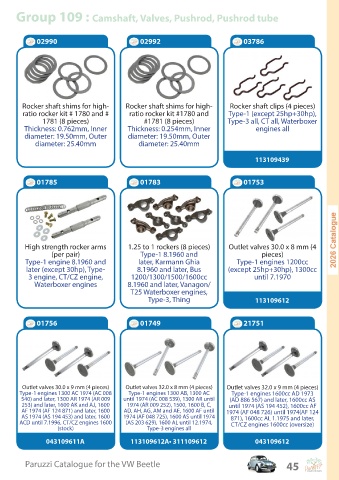

Page 45 - beetle
P. 45
Group 109 : Camshaft, Valves, Pushrod, Pushrod tube
02990 02992 03786
Rocker shaft shims for high- Rocker shaft shims for high- Rocker shaft clips (4 pieces)
ratio rocker kit # 1780 and # ratio rocker kit #1780 and Type-1 (except 25hp+30hp),
1781 (8 pieces) #1781 (8 pieces) Type-3 all, CT all, Waterboxer
Thickness: 0.762mm, Inner Thickness: 0.254mm, Inner engines all
diameter: 19.50mm, Outer diameter: 19.50mm, Outer
diameter: 25.40mm diameter: 25.40mm
113109439
01785 01783 01753
High strength rocker arms 1.25 to 1 rockers (8 pieces) Outlet valves 30.0 x 8 mm (4
(per pair) Type-1 8.1960 and pieces)
Type-1 engine 8.1960 and later, Karmann Ghia Type-1 engines 1200cc
later (except 30hp), Type- 8.1960 and later, Bus (except 25hp+30hp), 1300cc
3 engine, CT/CZ engine, 1200/1300/1500/1600cc until 7.1970
Waterboxer engines 8.1960 and later, Vanagon/
T25 Waterboxer engines,
Type-3, Thing 113109612
01756 01749 21751
Outlet valves 30.0 x 9 mm (4 pieces) Outlet valves 32.0 x 8 mm (4 pieces) Outlet valves 32.0 x 9 mm (4 pieces)
Type-1 engines 1300 AC 1974 (AC 008 Type-1 engines 1300 AB, 1300 AC Type-1 engines 1600cc AD 1973
540) and later, 1300 AR 1974 (AR 009 until 1974 (AC 008 539), 1300 AR until (AD 886 567) and later, 1600cc AS
253) and later, 1600 AK and AJ, 1600 1974 (AR 009 252), 1500, 1600 B, C, until 1974 (AS 194 452), 1600cc AF
AF 1974 (AF 124 871) and later, 1600 AD, AH, AG, AM and AE, 1600 AF until 1974 (AF 048 726) until 1974(AF 124
AS 1974 (AS 194 453) and later, 1600 1974 (AF 048 725), 1600 AS until 1974 871), 1600cc AL 1.1975 and later,
ACD until 7.1996, CT/CZ engines 1600 (AS 203 629), 1600 AL until 12.1974, CT/CZ engines 1600cc (oversize)
(stock) Type-3 engines all
043109611A 113109612A• 311109612 043109612
