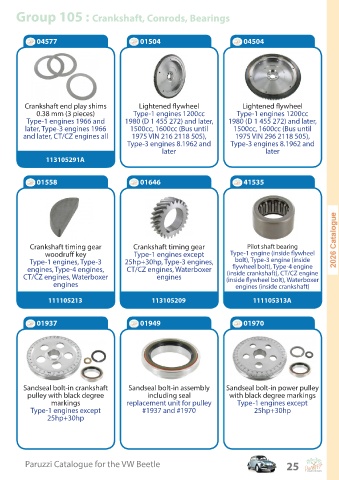

Page 25 - beetle

Group 105 : Crankshaft, Conrods, Bearings

04577 01504 04504

Crankshaft end play shims Lightened flywheel Lightened flywheel
0.38 mm (3 pieces) Type-1 engines 1200cc Type-1 engines 1200cc
Type-1 engines 1966 and 1980 (D 1 455 272) and later, 1980 (D 1 455 272) and later,
later, Type-3 engines 1966 1500cc, 1600cc (Bus until 1500cc, 1600cc (Bus until
and later, CT/CZ engines all 1975 VIN 216 2118 505), 1975 VIN 296 2118 505),
Type-3 engines 8.1962 and Type-3 engines 8.1962 and
later later
113105291A

01558 01646 41535

Crankshaft timing gear Crankshaft timing gear Pilot shaft bearing
woodruff key Type-1 engines except Type-1 engine (inside flywheel
Type-1 engines, Type-3 25hp+30hp, Type-3 engines, bolt), Type-3 engine (inside
engines, Type-4 engines, CT/CZ engines, Waterboxer flywheel bolt), Type-4 engine
(inside crankshaft), CT/CZ engine
CT/CZ engines, Waterboxer engines (inside flywheel bolt), Waterboxer
engines engines (inside crankshaft)

111105213 113105209 111105313A

01937 01949 01970

Sandseal bolt-in crankshaft Sandseal bolt-in assembly Sandseal bolt-in power pulley
pulley with black degree including seal with black degree markings
markings replacement unit for pulley Type-1 engines except
Type-1 engines except #1937 and #1970 25hp+30hp
25hp+30hp
