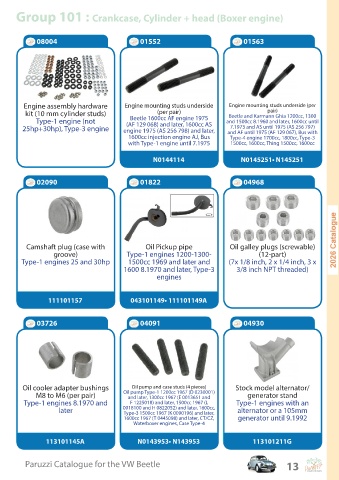

Page 13 - beetle

Group 101 : Crankcase, Cylinder + head (Boxer engine)

08004 01552 01563

Engine assembly hardware Engine mounting studs underside Engine mounting studs underside (per
pair)
kit (10 mm cylinder studs) (per pair) Beetle and Karmann Ghia 1200cc, 1300
Type-1 engine (not Beetle 1600cc AF engine 1975 and 1500cc 8.1960 and later, 1600cc until
(AF 129 068) and later, 1600cc AS
25hp+30hp), Type-3 engine engine 1975 (AS 256 798) and later, and AF until 1975 (AF 129 067), Bus with
7.1973 and AS until 1975 (AS 256 797)
1600cc injection engine AJ, Bus Type-4 engine 1700cc, 1800cc, Type-3
with Type-1 engine until 7.1975 1500cc, 1600cc, Thing 1500cc, 1600cc

N0144114 N0145251• N145251

02090 01822 04968

Camshaft plug (case with Oil Pickup pipe Oil galley plugs (screwable)
groove) Type-1 engines 1200-1300- (12-part)
Type-1 engines 25 and 30hp 1500cc 1969 and later and (7x 1/8 inch, 2 x 1/4 inch, 3 x
1600 8.1970 and later, Type-3 3/8 inch NPT threaded)
engines

111101157 043101149• 111101149A

03726 04091 04930

Oil cooler adapter bushings Oil pump and case studs (4 pieces) Stock model alternator/
M8 to M6 (per pair) Oil pump Type-1 1200cc 1967 (D 0230001) generator stand
and later, 1300cc 1967 (E 0013651 and
Type-1 engines 8.1970 and F 1225018) and later, 1500cc 1967 (L Type-1 engines with an
later 0018100 and H 0822052) and later, 1600cc, alternator or a 105mm
Type-3 1500cc 1967 (K 0090196) and later,
1600cc 1967 (T 0445098) and later, CT/CZ, generator until 9.1992
Waterboxer engines, Case Type-4

113101145A N0143953• N143953 113101211G

eetle
Paruzzi Catalogue for the VW Beetle 13
