Page 113 - beetle
P. 113

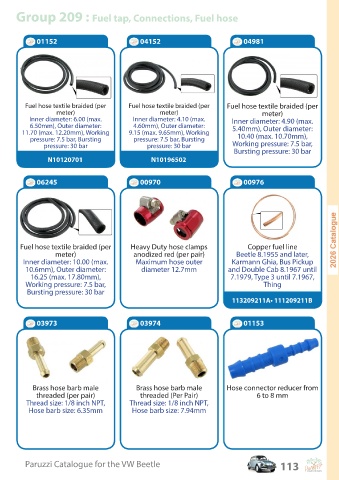

Group 209 : Fuel tap, Connections, Fuel hose
01152 04152 04981
Fuel hose textile braided (per Fuel hose textile braided (per Fuel hose textile braided (per
meter) meter) meter)
Inner diameter: 6.00 (max. Inner diameter: 4.10 (max. Inner diameter: 4.90 (max.
6.50mm), Outer diameter: 4.60mm), Outer diameter: 5.40mm), Outer diameter:
11.70 (max. 12.20mm), Working 9.15 (max. 9.65mm), Working 10.40 (max. 10.70mm),
pressure: 7.5 bar, Bursting pressure: 7.5 bar, Bursting
pressure: 30 bar pressure: 30 bar Working pressure: 7.5 bar,
Bursting pressure: 30 bar
N10120701 N10196502
06245 00970 00976
Fuel hose textile braided (per Heavy Duty hose clamps Copper fuel line
meter) anodized red (per pair) Beetle 8.1955 and later,
Inner diameter: 10.00 (max. Maximum hose outer Karmann Ghia, Bus Pickup
10.6mm), Outer diameter: diameter 12.7mm and Double Cab 8.1967 until
16.25 (max. 17.80mm), 7.1979, Type 3 until 7.1967,
Working pressure: 7.5 bar, Thing
Bursting pressure: 30 bar
113209211A• 111209211B
03973 03974 01153
Brass hose barb male Brass hose barb male Hose connector reducer from
threaded (per pair) threaded (Per Pair) 6 to 8 mm
Thread size: 1/8 inch NPT, Thread size: 1/8 inch NPT,
Hose barb size: 6.35mm Hose barb size: 7.94mm
P aruzzi C a talogue f or the V W B eetle 113
Paruzzi Catalogue for the VW Beetle
113
